Automated Door Access Control

Low cost and reliable

Huzzard HSRF-ENC-KIT

Automate access to entrances. Huzzard’s patented solution includes:

Barcode scan engine inside a weatherized enclosure.
Ability to read barcodes off key tags or Smartphone screens.
Overall Dimensions: 4.7″H x 3.0″W x 2.2″D
Serial cable with power supply, (also available with USB).
Connectivity extender kit allowing connectivity up to 60 feet from PC.
U.S. Patent # 10,268,856

The Huzzard-ENC-KIT integrates with many popular access control components including a Weigand converter – see Install diagram below.

Compatible with ABC DataTrak

When hardware and software live in harmony you have one less tech support issue to deal with. The HSRF-ENC-KIT comes pre-programmed to work seamlessly with any software including ABC Financial DataTrak, Peak Payments and 365 Member Access programs. After integrating your Huzzard HSRF-ENC-KIT with the other components of your access control system (see Install Diagram ) you are ready to start automatically scanning member’s barcoded key tags or Smartphone screens and controlling access to entrances outside and inside your facility.

Contact-free

Members will be pleased with how quickly their entrance experience will be. The HSRF-ENC-KIT offers exceptionally high first read rates. That means members simply present their barcoded key tag, or, barcode on Smartphone and within seconds they are on their way.

Versatile with no cost custom programming

You tell us specific communication settings and scanner behavior (like “delete % sign in barcode”) and we pre-program your unique settings at no extra cost. You also have a variety of accessories to improve productivity including:
– 8′ coiled Serial cable
– Power Supply
– 25′ extension cable
– Connectivity Extender Kit.

On Screen Barcodes

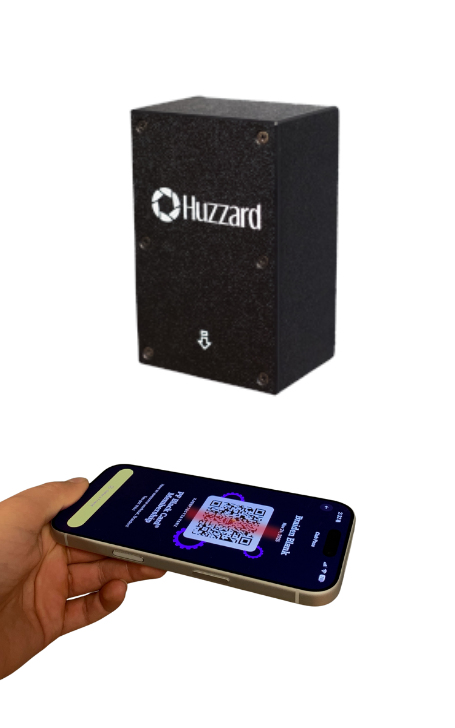

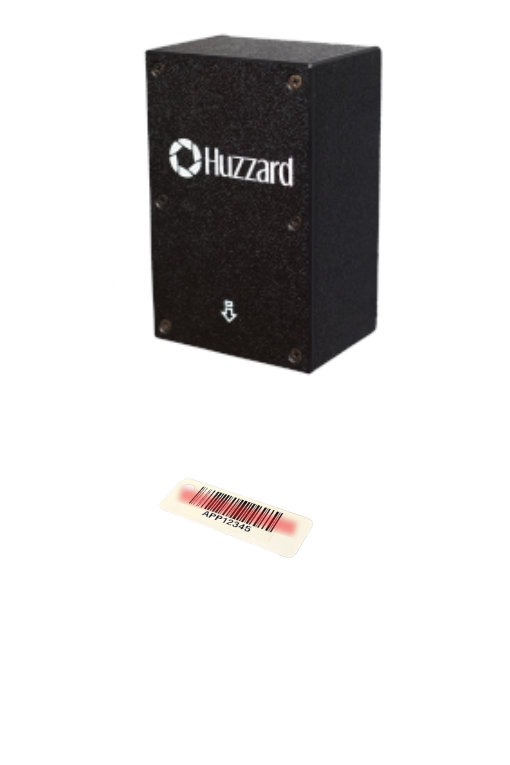

Quickly reads barcodes from mobile device screens, keytags, and other sources.

Weatherized

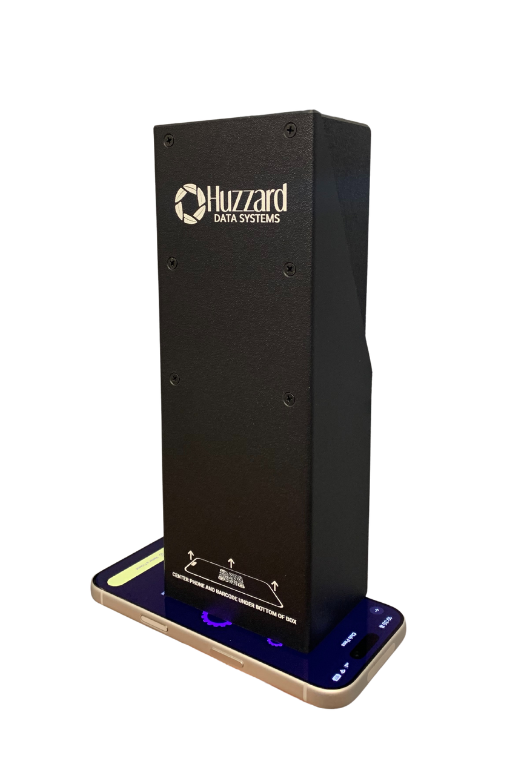

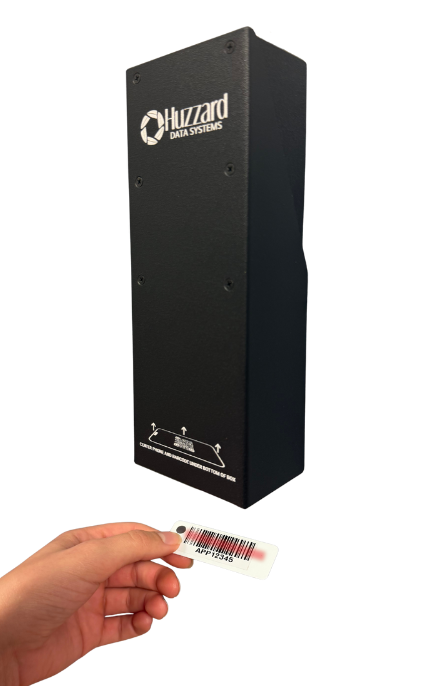

The patented solution includes a weatherized enclosure that is perfect for outdoor installations.

Access Time Control

Control with DataTrak what time your members are allowed to access the facility.

Hands Free

Motion activation detects a presented barcode and decodes without any user intervention.

Feedback

Audible tone to indicate a successful read.

Installation shown is using HSRF-CONN-EXT-KIT. Sold Separately or included in HSRF-ENC-KIT 400.

Installation shown is using HSRF-CONN-EXT-KIT. Sold Separately or included in HSRF-ENC-KIT 400.

Access Control is a security method that allows authorized users access to specific locations.

Access Control allows you to easily and precisely control and monitor who has access into your building and other internal rooms.

Our HSRF-ENC-KIT access control solution uses barcode technology instead of RFID which can be significantly more expensive to implement. Our patented barcode access control kit is also weatherized; making it suitable for inside and outdoor use.

The HSRF-ENC-KIT includes:

Custom Programmed Access Control Barcode Scanner
Weatherized enclosure box
6 foot coiled serial cable (Not needed with the HSRF-ENC-KIT 400)
Gasket maker
Connectivity extension cable (Available with the HSRF-ENC-KIT 400 or when purchased separately)
RJ45 Couplers (Included with HSRF-ENC-KIT 400 or Connectivity extension cable)

Besides what is included in our HSRF-ENC-KIT, you will need (from our preferred installer) :

Magnetic Door Lock
Access Controller
Access Control software
Barcoded member ID
Wiring

We do not provide the installation service, but have partnerships with skilled installers across the United States.
Note: Our preferred installers will also supply all other components, beyond the HSRF-ENC-KIT, required for your access control solution.

We have multiple technical documents to help you through your Access Control Installation:

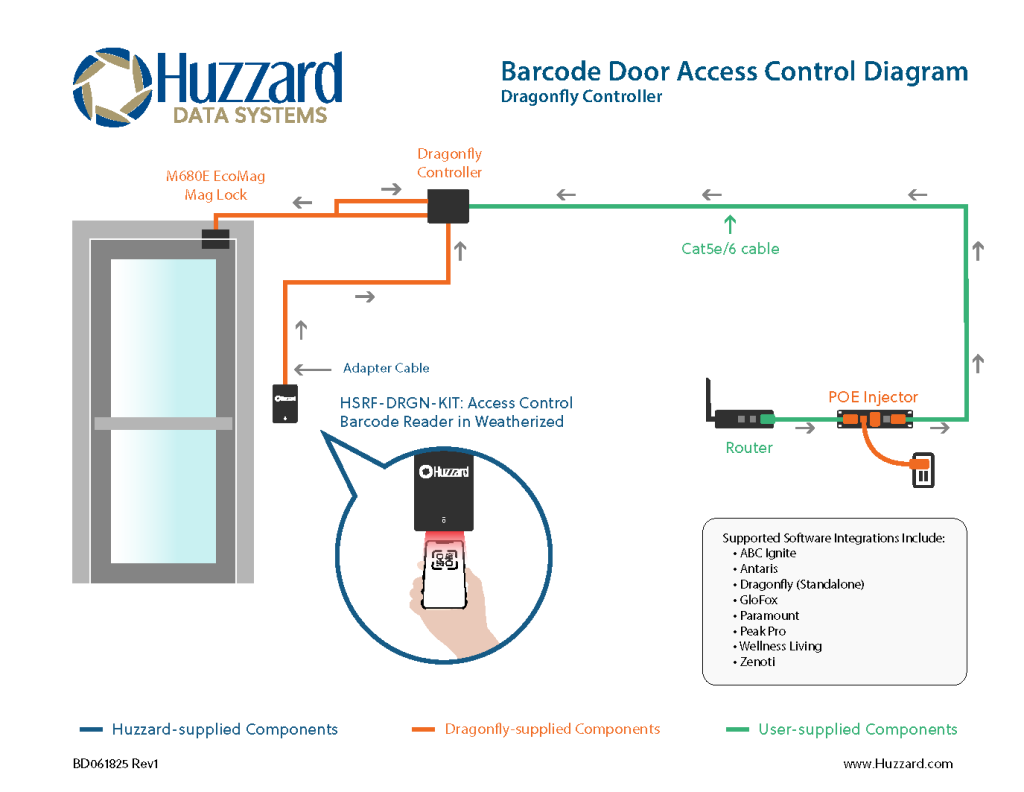

Installation Diagram with Security Controller (Recommended)

Installation Diagram using PC

Pre-install and field installation instructions

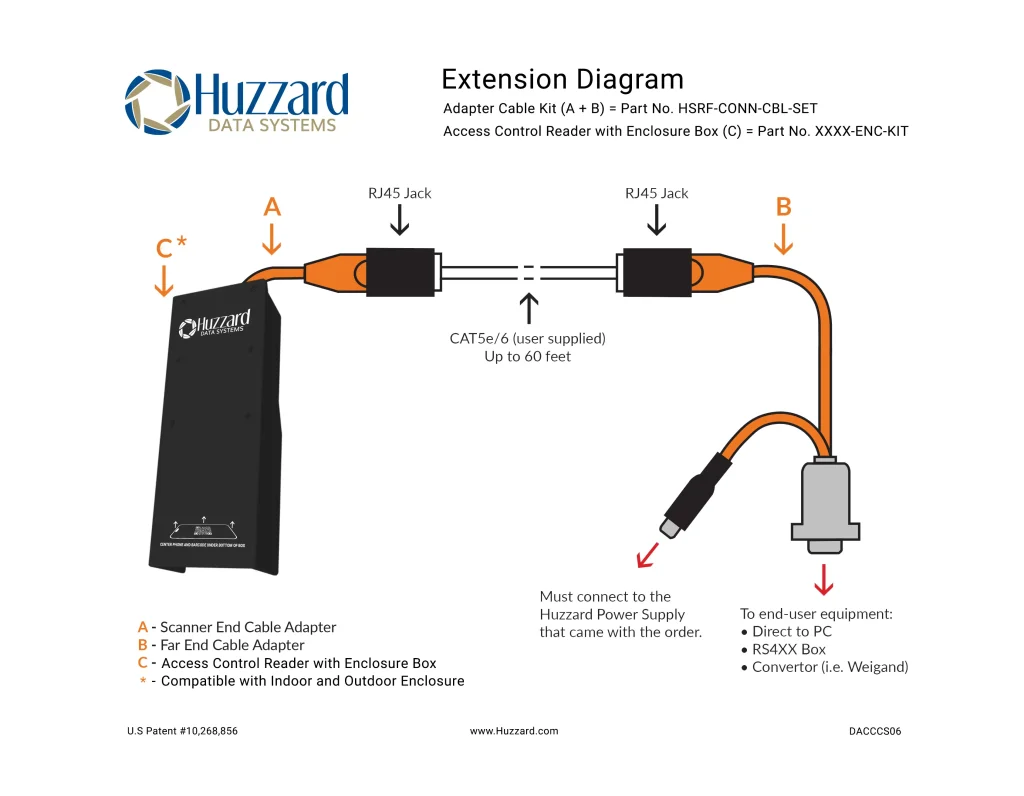

Our HSRF-ENC-KIT solution includes a 6 foot coiled RS232 cable. We offer an extension cable accessory that will allow you to extend up to 60 feet with Cat5/6e cabling.
If you require more than 60 feet, contact us regarding powered RS232 extenders. Previous installations show connectivity up to 150 feet+ with use of powered extenders.

Have questions or ready to order?

Same Day Shipping

We are a part of your satisfaction team and will not slow you down. Scanners configured with your custom settings ship the same day if the Purchase Order is received by 4:30 pm CST. We are ready when you are.

Trust is earned

Huzzard has a long standing relationship with ABC Financial as a technology partner. Our hardware and software solutions work flawlessly with the ABC DataTrak program. Good for you; Great for your members.

Experience and Knowledge

We love to improve processes and fix problems. We will help your club operate more efficiently and with fewer mistakes. You will have a wide selection of data presentation, data entry, and data collection solutions to choose from.

Let's Talk

Wondering how you can streamline sharing information, operations, and, cut costs? We are just a call or email away. Here is our direct line and email address. Connect today to start the conversation.

920.257.4357 or info@huzzard.com
